Docol 500DP Dual Phase Steel (DP)
Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase.
Phone ：+8618340003366
WhatsApp ：+8618340003366
Email ：info@sdzyesteel.com

PRODUCT PARAMETERS

Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase. Bainite may also be present as a complementary phase.



Mechanical Properties

Steel GradeStandardPlatingTest DirectionYield Strength Rp0.2 (MPa)Tensile Strength Rm (MPa)Extension Rate A80( min%)Minimum Bend Inner Diameter for 90 ° Bend
Docol CR290Y490T-DPVDA239- 100:2016UC, GI, GA*, FRL290-380490-60024UC 0.0xtGI, GA, FI0.5xt
Docol CR230Y500T- DLSSABUCT230-300500-600240.0xt
Docol CR290Y500T- DPSSABUCT290-370500-600200.0xt



Chemical Composition

Steel GradePlatingC (max %)Si (max %)Mn(max %)P (max %)S(max %)Al( %)Cr Mo(max%)B(max %)Nb Title(max %)
Docol CR290Y490T-DPUC0.100.501.000.0250.0100.015--0.10-
Docol CR290Y490T-DPGI,GA,ZA0.140.501.800.0500.0100.015-1.01.000.150.005
Docol CR230Y500T- DLUC0.080.401.800.0250.0100.015--0.10-
Docol CR290Y500T- DPUC0.100.501.000.0250.0100.015--0.10-



Plating

Plating TypePlating GradeStandardSingle-sided coating quality, single-point test (g/m2)Single side thickness, for reference only(μm)
GI40/40VDA239-10040-605.6-8.5
GI50/50VDA239-10050-707.0-9.9
GI60/60VDA239-10060-908.5-12.7
GI70/70VDA239-10070-1009.9-14.1
GI85/85VDA239-10085-11512.0-16.2
GI115/115VDA239-100115-15516.2-21.8
GA40/40VDA239-10040-605.6-8.5
GA50/50VDA239-10050-807.0-11.3
ZA95As required
7-
ZA130As required
10-

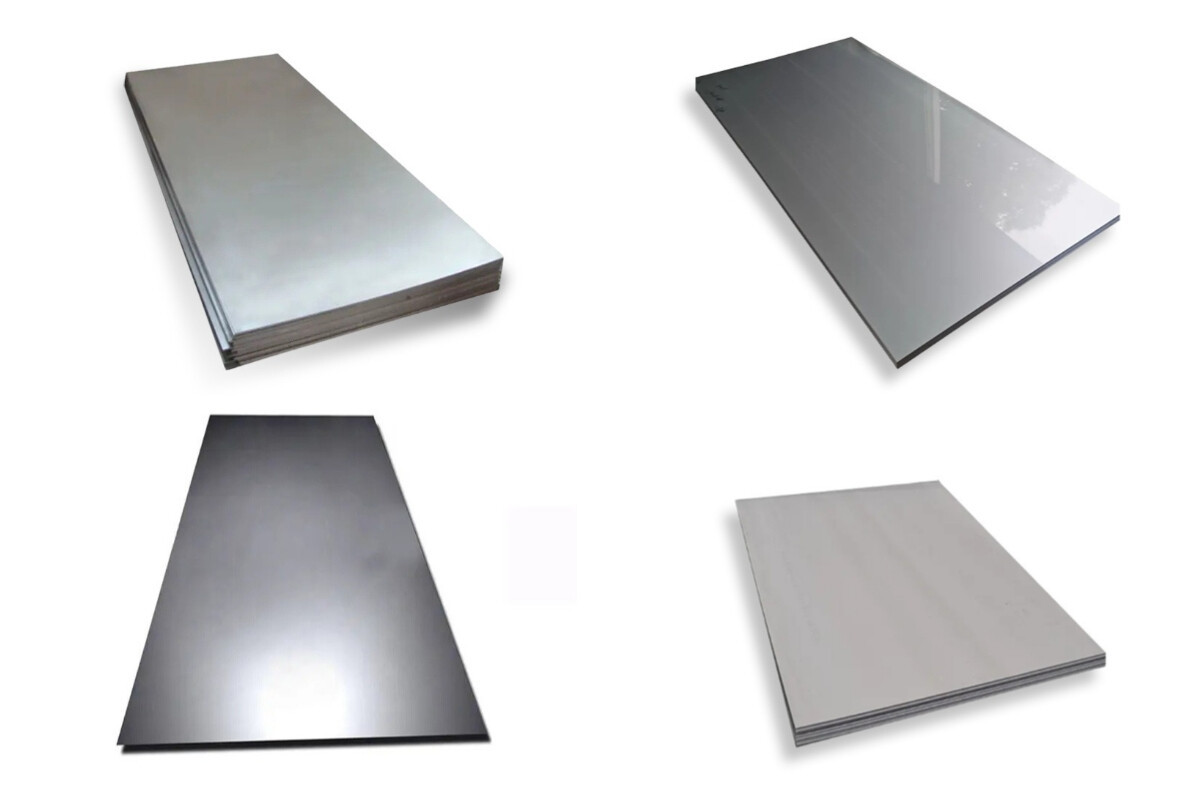

下载 (1).jpg


PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

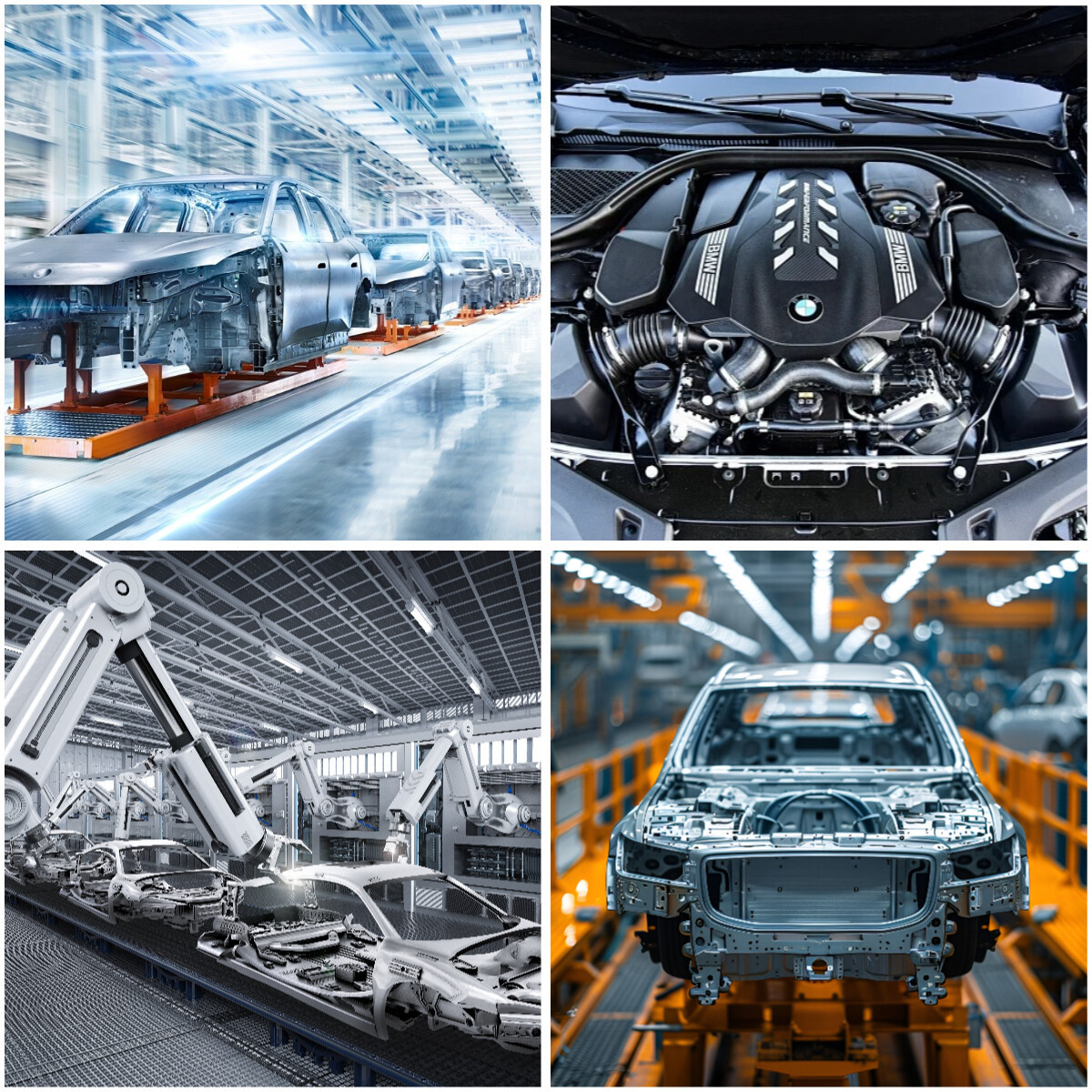

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

下载 (8).jpg


板 (6).jpg

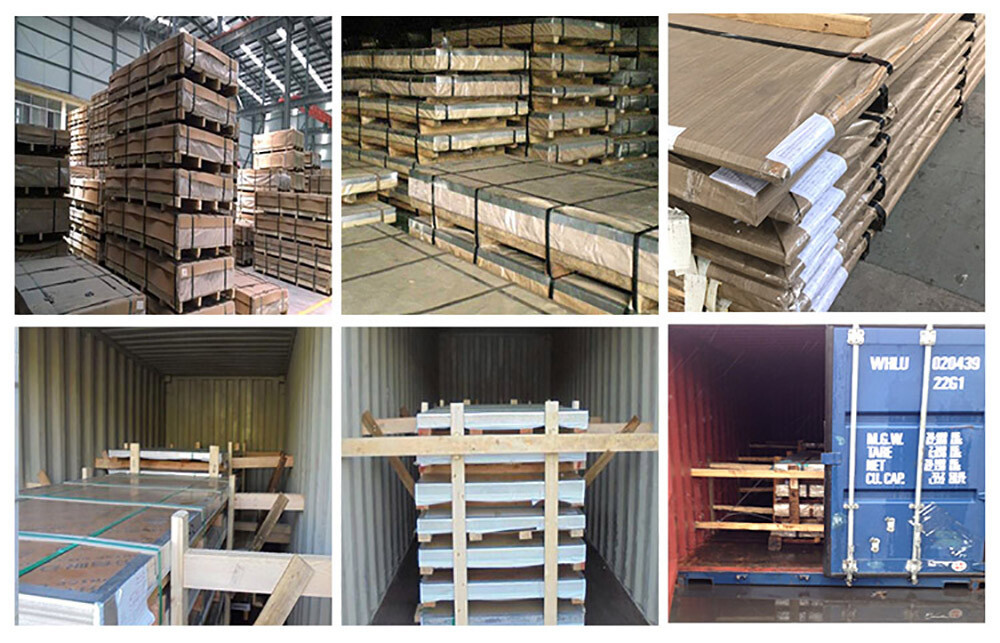

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
