Docol PHS 1500M Hot Formed Steel (PHS)
Docol PHS 1500M is a steel that can be supplied in the form of hot rolled steel and cold rolled steel. Docol PHS1500M hot-formed steel is widely developed for parts made by direct or indirect hot forming in the automotive industry.
Phone ：+8618340003366
WhatsApp ：+8618340003366
Email ：info@sdzyesteel.com

PRODUCT PARAMETERS

Hot-formed steel is a type of steel that changes its structure and properties through thermo-mechanical processing (such as rolling, forging, extrusion, etc.) under high temperature. It has excellent properties, workability and corrosion resistance. Because hot-formed steel is processed at high temperatures, its grain size becomes larger and the deformation ability of the steel is also enhanced. As a result, it has excellent plasticity and can easily realize complex deformation processes. During the processing of hot-formed steel at high temperatures, due to the strong oxide film protection on the surface of the steel, its surface quality is better, which facilitates subsequent processing and surface treatment. Applications of Docol PHS 1500M hot-formed steel include safety parts such as door anti-collision beams, bumper systems, and B- pillar reinforcements.

Mechanical Properties

Steel GradeStandardStatusTest DirectionYield Strength Rp0.2 (MPa)Tensile Strength Rm (MPa)Extension Rate A80( %)Extension Rate A5( %)
Docol PHS FH 1500SSABFull hardT96010604-
Docol PHS CR1500SSABFire after deliveryT34048028-
Docol PHS CR1500SSABHot printingT120015906-
Docol PHS HR1500SSABhot rollingT5707152022
Docol PHS HR1500 ASSABAnnealingT3505302533
Docol PHS HR1500SSABHot printingT1200159067



Chemical Composition

BrandC (max %)Si (max %)Mn(max %)P (max %)S(max %)Cr(max %)B(max %)
Docol PHS CR15000.20-0.250.15-0.351.00-1.350.0250.0050.350.0020-0.0050
Docol PHS HR15000.20-0.250.15-0.351.00-1.350.0250.0050.350.0020-0.0050

下载 (1).jpg

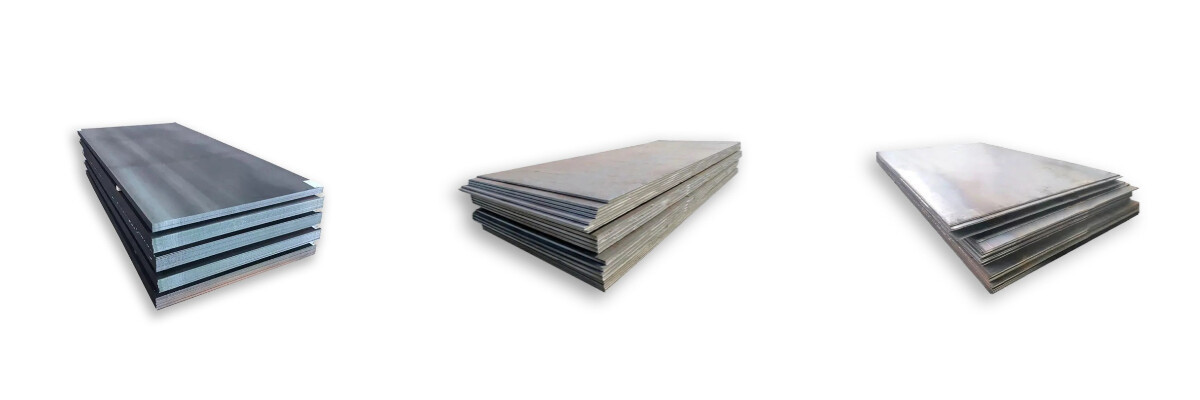

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

下载 (8).jpg

板 (6).jpg

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
