SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil

SPCC steel is produced by subjecting hot rolled steel to a cold rolling process, which not only improves its surface finish but also enhances its mechanical properties.

Phone ：+8618340003366

WhatsApp ：+8618340003366

Email ：info@sdzyesteel.com

PRODUCT PARAMETERS

Carbon Steel: Properties, Production, Examples and Applications

Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.

Types of carbon steel and their properties

Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility

Carbon Steel Description

Grade:

1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E

2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q

3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80

4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE

PRODUCT DETAILS

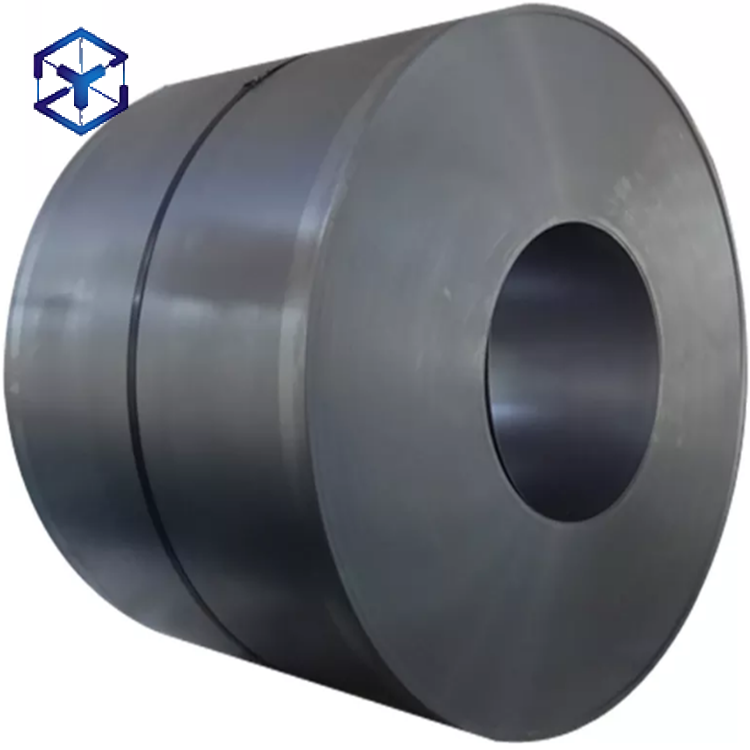

SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil

SPCC steel coil comes with impressive properties, making it an ideal choice across various industries. A key advantage is its high tensile strength, giving it the capacity to deal with heavy loads and resist deformation. So SPCC steel coil is especially suitable for applications requiring superior durability and structural integrity. Another notable feature of SPCC steel coil is its excellent formability as the coil can be easily shaped and molded into different sizes and dimensions without compromising its structural integrity. This flexibility makes it suitable for manufacturing processes like stamping, bending and deep drawing. SPCC steel coils have a uniform appearance that adds a professional feel to finished products using this material. Additionally, this surface helps greatly in preventing corrosion, thus extending the life of the coils.

Product Parameters
Product Name	SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm
Thickness	Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

SPCC Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035

SPCCT Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035

SPCD Grade: : C≦0.10; Mn≦0.50; P≦0.040; S≦0.035

SPCE Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030

SPCF Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030

SPCG Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020

Mechanical Properties

Hardness: Heat Treatment Code HRBS HV10

Annealed A – –

Annealed + Finishing S – –

1/8 hard 8 50~71 95~130

1/4 hard 4 65~80 115~150

1/2 hard 2 74~89 135~185

Full hard 1 ≥85 ≥170

Scope of Application

SPCC/SPCCT: Common & General Use; Characteristics: Suitable for bending processing and simple deep drawing processing, is the most demand varieties; Applications: Refrigerators, rails, switchboards, iron baskets and so on.

SPCD: Drawing & Stamping Use; Characteristics: Second only to SPCE, is the quality of the smaller deviation of the drawing steel plate; Applications: Automobile chassis, roof and so on.

SPCE/SPCF: Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep drawing performance is excellent, after the stamping can get a beautiful surface. Applications: Car fender, rear side panels and so on.

SPCG: Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very low carbon cold rolled steel, excellent deep drawing processability. Applications: Car interior board, surface and so on.

Remarks: SPCCT is users specified the grade of SPCC which need to ensure that the tensile strength and extensibility of the species. SPCF, SPCG will need to ensure that there have non-aging (not due to the occurrence of tensile deformation of the property), after outside factory for 6 months – that is, SPCC, SPCD, SPCE if stored for a long time, will produce mechanical performance changes, especially to reduce the cold stamping performance, it should be used as soon as possible.SPCC series catalog need to make provision for hardness and surface in advance when ordering.

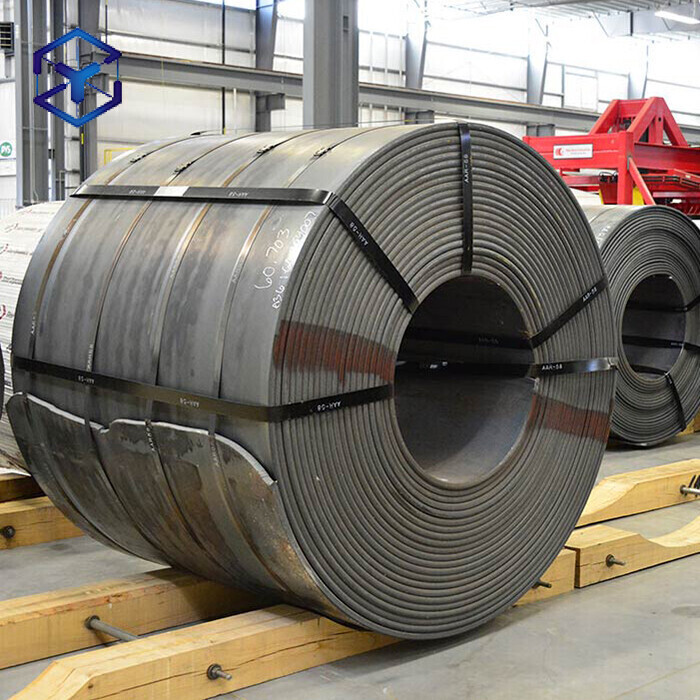

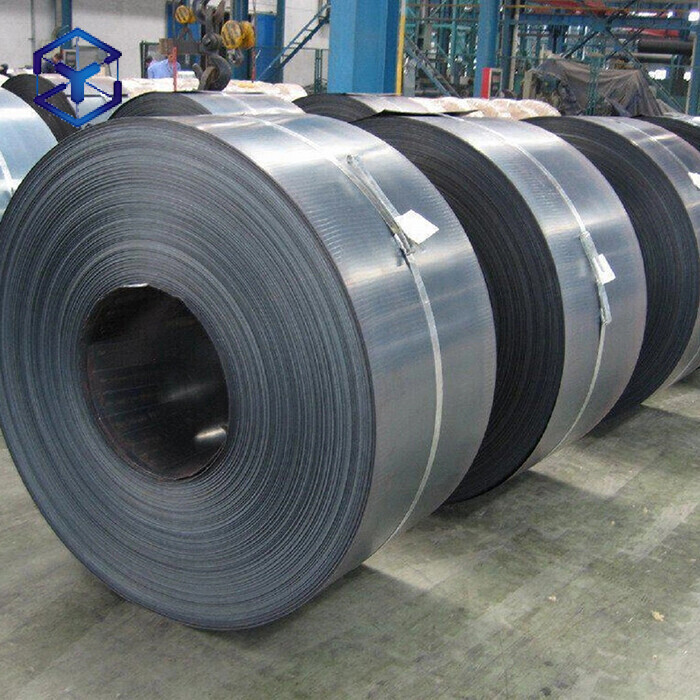

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

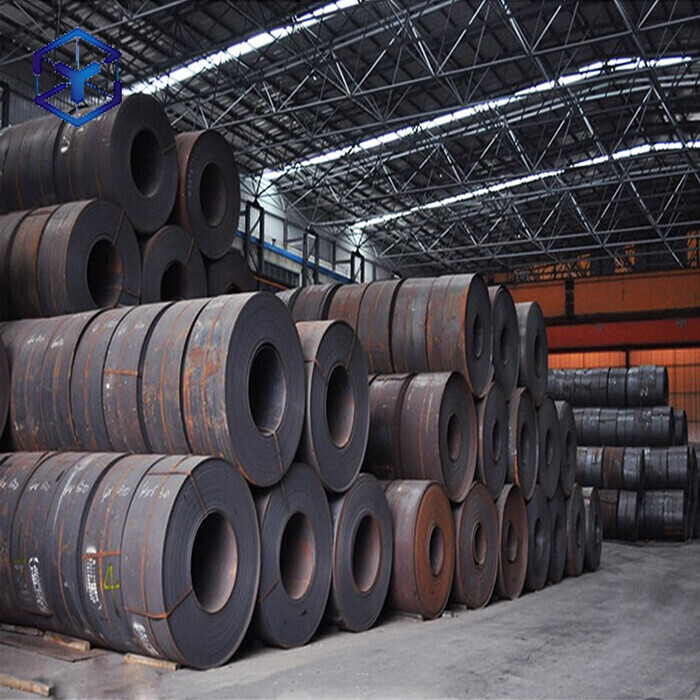

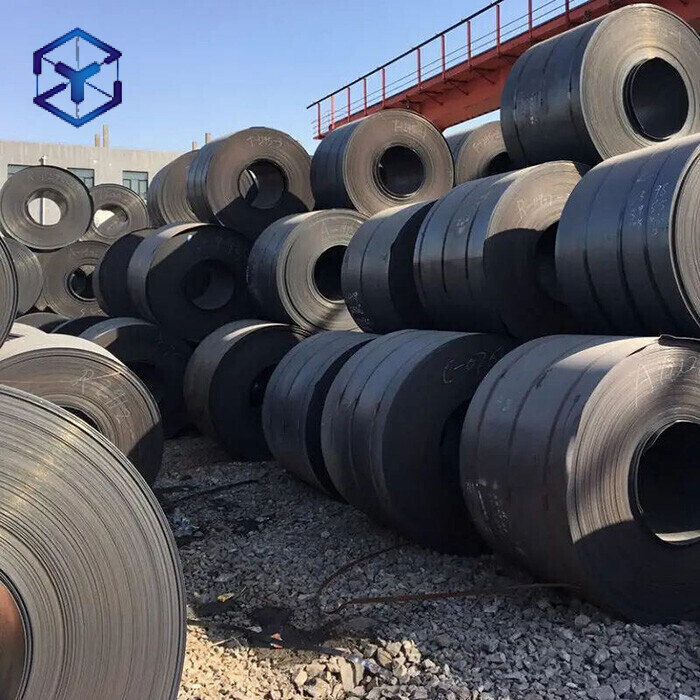

FACTORY DISPLAY

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
