Steel Rail
Steel rail, also known as railroad track or railway track, is a vital component of railway infrastructure that supports and guides railway vehicles, such as trains, trams, and subway cars. Steel rail provides a smooth, stable surface for trains to travel on, ensuring safe and efficient transportation of passengers and freight.

PRODUCT PARAMETERS

StandardSepc.Material   Typical Grade
UIC860UIC54700,900A,900B
UIC60
EN13674.150E1
R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
54E1
60E1
60E2
BS-11-1985BS80A700,900A,900B
BS90A
BS100A
AREMA115RESS,HH,LA,IH
136RE
ASCE60U71Mn
ASCE85U71Mn
GB   2585-200750kg/mU71Mn
60kg/mU75V
75kg/m
TB/T2344-201250kg/mU71Mn,U75V,U77MnCr
60kg/mU78CrV
75kg/m
GB   11264-19898kg/mQ235
12kg/mQ235
15kg/m55Q, Q235
18kg/m55Q, Q235
22kg/m55Q, Q235
24kg/m55Q, Q235
30kg/m55Q, Q235
38kg/m50Mn, U71Mn
43kg/m50Mn, U71Mn
GB   Crane railsQU70U71Mn
QU80U71Mn
QU100U71Mn
QU120U71Mn


Standard: ASTMA1, AREMA
SizeDimension(mm)WeightMaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)(kg/m)
ASCE 2538.169.8569.857.5412.47006-12
ASCE 3042.8679.3879.388.3314.887006-12
ASCE 4047.6288.988.99.9219.847006-12
ASCE 6060.32107.95107.9512.329.767006-12
ASCE 7562.71122.24122.2413.4937.2900A/110012-25
ASCE 8565.09131.76131.7614.2942.17900A/110012-25
90RA65.09142.88130.1814.2944.65900A/110012-25
115RE69.06168.28139.715.8856.9900A/110012-25
136RE74.61185.74152.417.4667.41900A/110012-25
175LBs109.86152.4152.438.186.8900A/110012-25
Standard: BS11: 1985
SizeDimension(mm)WeightMaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)(kg/m)
50 O52.39100.01100.0110.3224.8337006-18
60 A57.15114.3109.5411.1130.618900A6-18
75 A61.91128.59114.312.737.455900A8-25
75 R61.91128.59122.2413.137.041900A8-25
80 A63.5133.35117.4713.139.761900A8-25
80 R63.5133.3512713.4939.674900A8-25
90 A66.67142.8812713.8945.099900A8-25
100 A69.85152.4133.3515.0850.182900A8-25
113 A69.85158.75139.72056.398900A8-25
Australian Standard Railway
standard:AS1085
SizeDimensionWeight (kg/m)Length Material
Head(mm)Height(mm)Bottom(mm)Web(mm)(m)
31KG63.5117.510811.531.58-15900A/1100
47KG70141.312714.346.5
50KG701541271550.8
60KG7017014616.561
68KG73.418615217.567.6
73KG701571463273.63
86KG10210215584.1185.5
89KG1021141785189.81

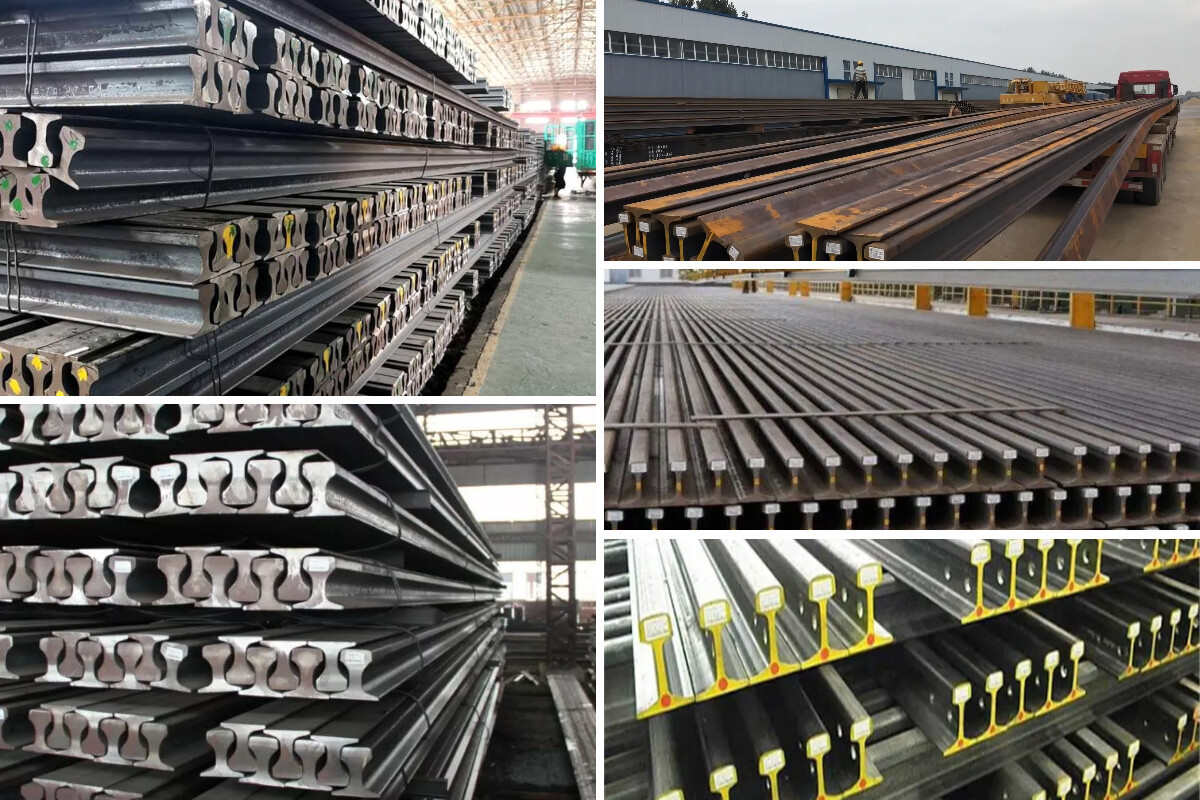

steel rail.jpg

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

下载 (11).jpg


PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

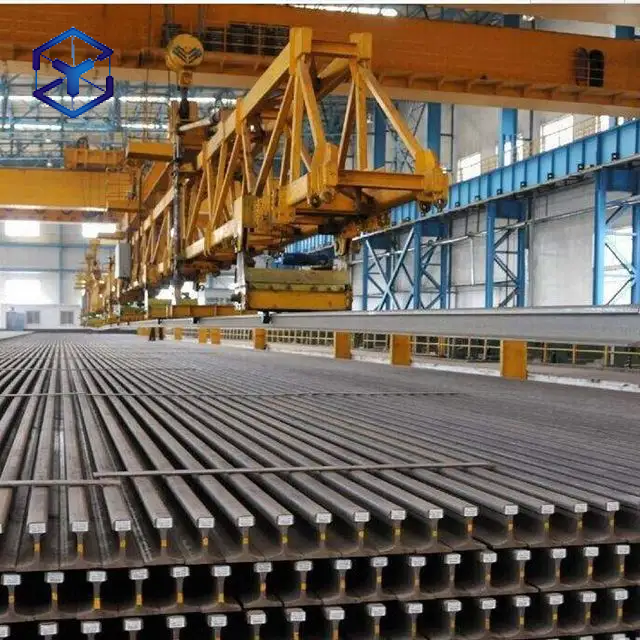

FACTORY DISPLAY

  • 19.jpg
  • 18.jpg
  • 17.jpg
  • 16.jpg
  • 15.jpg
  • 14.jpg
  • 13.jpg
  • 12.jpg
  • 11.jpg
  • 10.jpg
  • 9.jpg
  • 20.jpg

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
