Cold Rolled Ordinary Oriented Silicon Steel
Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value.

PRODUCT PARAMETERS

Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value. The cold-rolled strip has a smooth surface, good punching performance and high core filling factor.


Product Parameters

CategorySilicon Content/%Nominal Thickness/MmLord To Use Way
Hot Rolled Silicon Steel(No Orientation)Hot rolled low silicon steel(Motor Steel)1.0~2.50.5Household motors and micromotors
Hot rolled high silicon steel(Transformer steel)3.0~4.50.35,0.50Transformer
Cold Rolled Electrical SteelCold rolled non-oriented electrical steel(Motor Steel)Low carbon electrical steel≤ 0.50.50,0.65Small transformers and ballasts for household motors, micromotors
Silicon steel>0.5~3.50.35,0.50Medium and large motors, generators and transformers
Cold rolled grain oriented silicon steel(Transformer steel)Ordinary oriented silicon steel2.9~3.30.18,0.23,0.27
0.30,0.35
Large, medium and small transformers and ballasts
High magnetic induction oriented silicon steel
Special Purpose Silicon SteelCold rolled grain oriented silicon steel strip2.9~3.30.03,0.05,0.10Pulse transformer, magnetic amplifier, high frequency transformer and electric welding machine
Cold rolled non-oriented silicon steel strip3.00.15,0.20High-frequency motors and generators
Cold rolled non-oriented silicon steel for magnetic switch3.00.70Relays and magnetic switches
Cold rolled high silicon steel6.50.1~0.5High-frequency motors, transformers and magnetic shielding

下载 (1).jpg

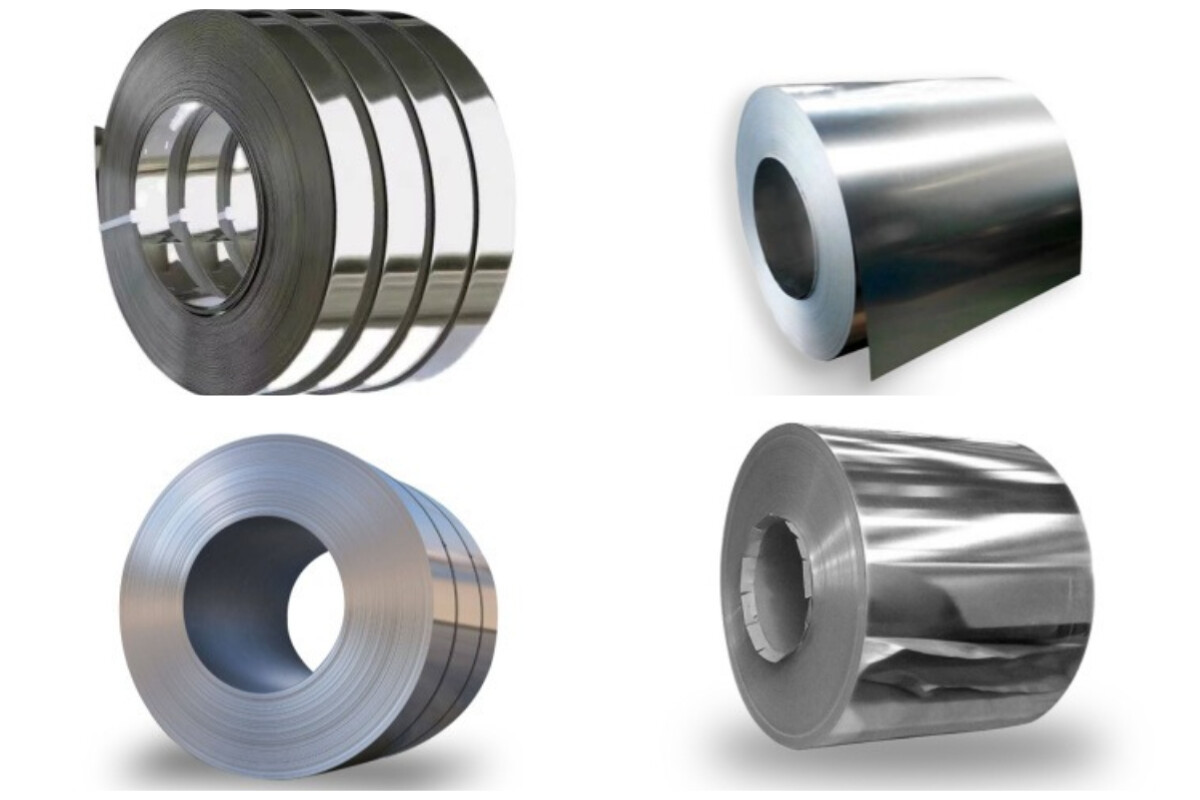

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

下载 (1).jpg


PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

FACTORY DISPLAY

  • 19.jpg
  • 18.jpg
  • 17.jpg
  • 16.jpg
  • 15.jpg
  • 14.jpg
  • 13.jpg
  • 12.jpg
  • 11.jpg
  • 10.jpg
  • 9.jpg
  • 20.jpg

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
